Hot Selling CB-200A 20T Hydraulic Copper Busbar Bender Construction Tool for 12mm Thickness Steel Busbar Bending
$222.99
Hello friend, welcome to my store. I'm Qwinn from China. Sorry for the delayed reply due to the time difference. If you want to check any product details, **please send me the product link directly at the first time**, and I will give you the exact information about price, stock, shipping and other details right away. Feel free to contact me anytime: WhatsApp: +86 18163698923 Email: 3157693835@qq.com WeChat: 19108481134

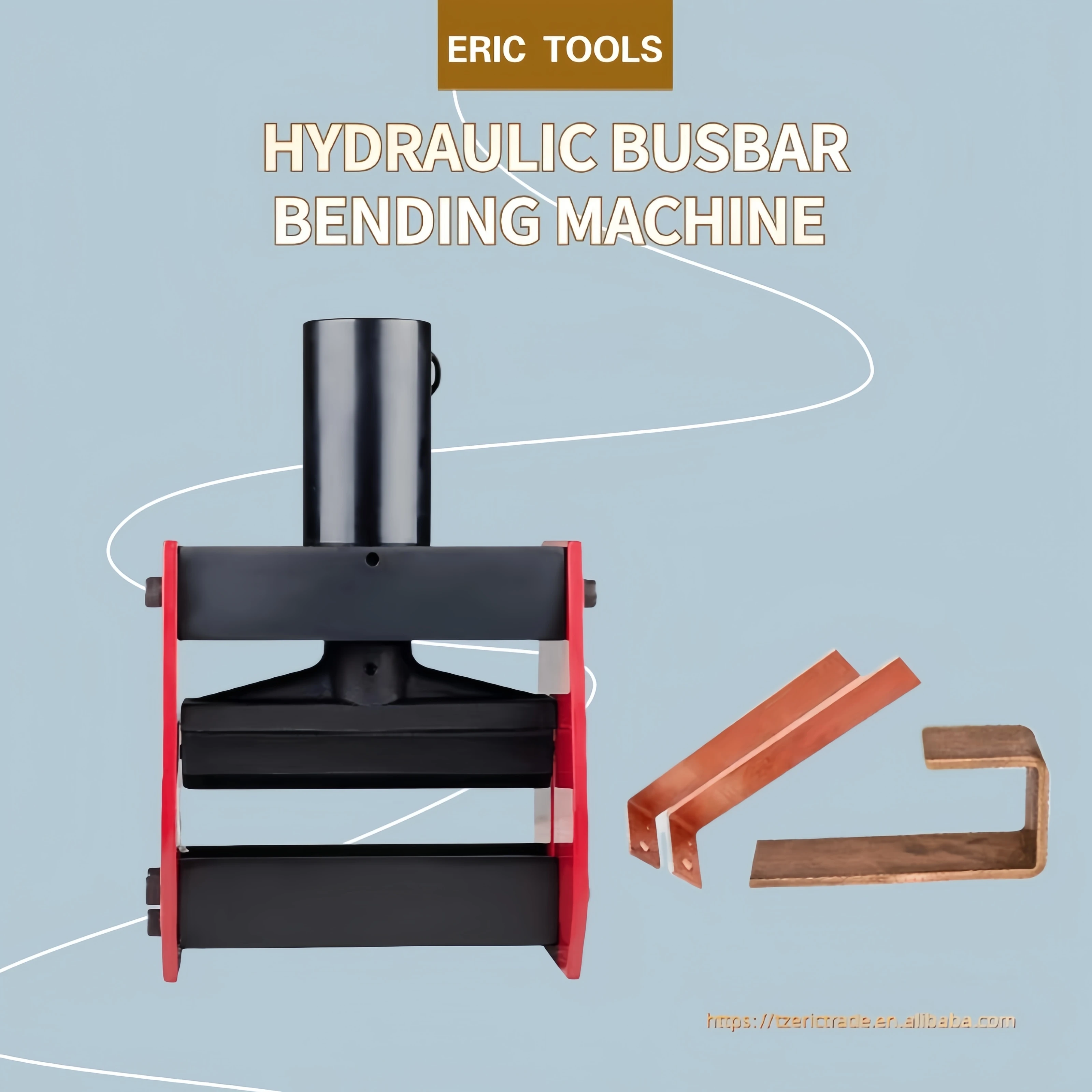

Item: Hydraulic Busbar bending machine

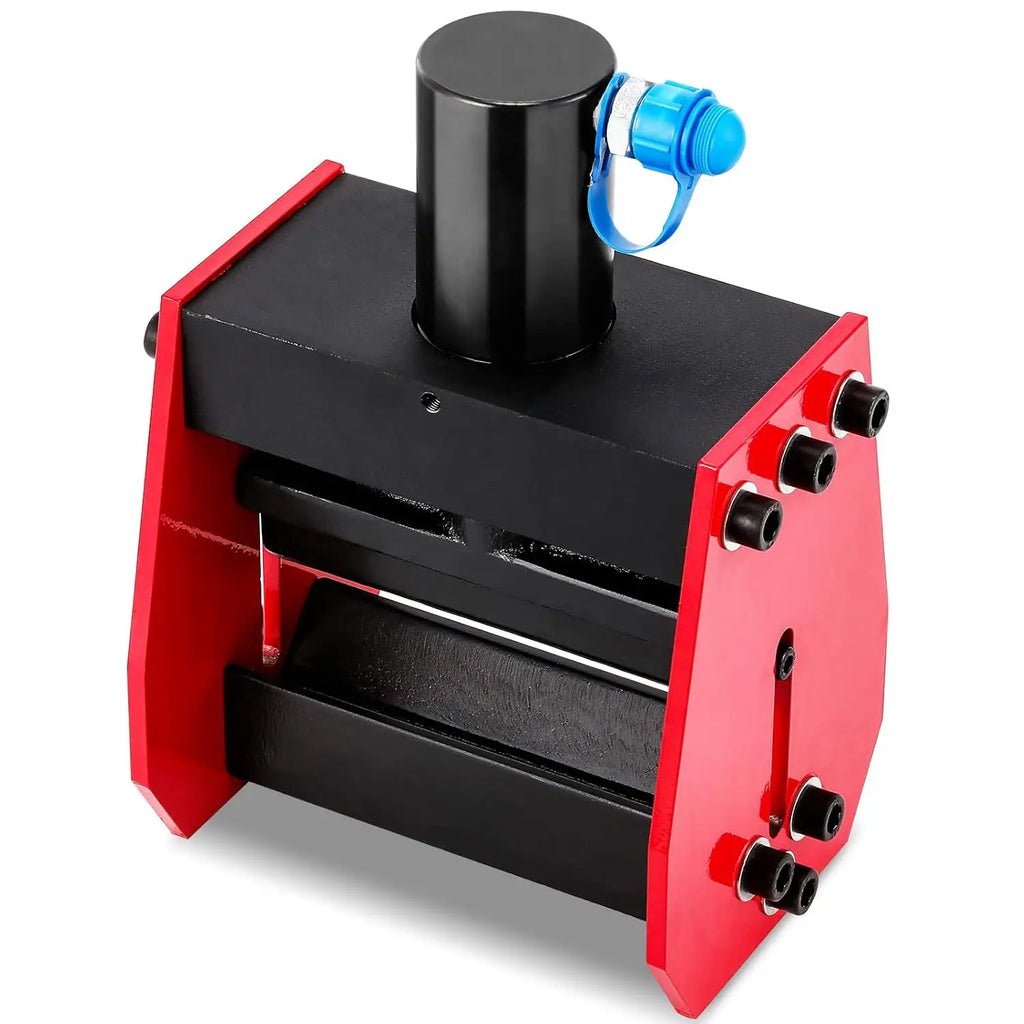

CB-200A HYDRAULIC BENDING TOOL
1. Suitable for the bending work of copper and aluminum row and other metal materials. 2. Having the pattern of angle of bending. 3. The customization equipment of panel width prevents the bent busbar from deforming. 4. It can be carried to the site or factories to carry out the massive bending work. 5.The maximum bending angle 90° 6. The surface of parts won't be damaged after being bent.
Extensive USE
Commonly used in electric power,cheminal industry steel ,machinery ,industry an so on...
Copper bar bending ,aluminum row bending ,iron plate bending ,applicable electric cabinet.
PRODUCT SPECIFICATIONS
|
Model
|
CB-150D
|
CB-200A
|
|
Output
|
16T
|
20T
|
|
Max Width (copper and aluminum row)
|
<=150mm
|
<=200mm
|
|
Max Thickness (copper and aluminum row)
|
3-10mm
|
3-12mm
|
|

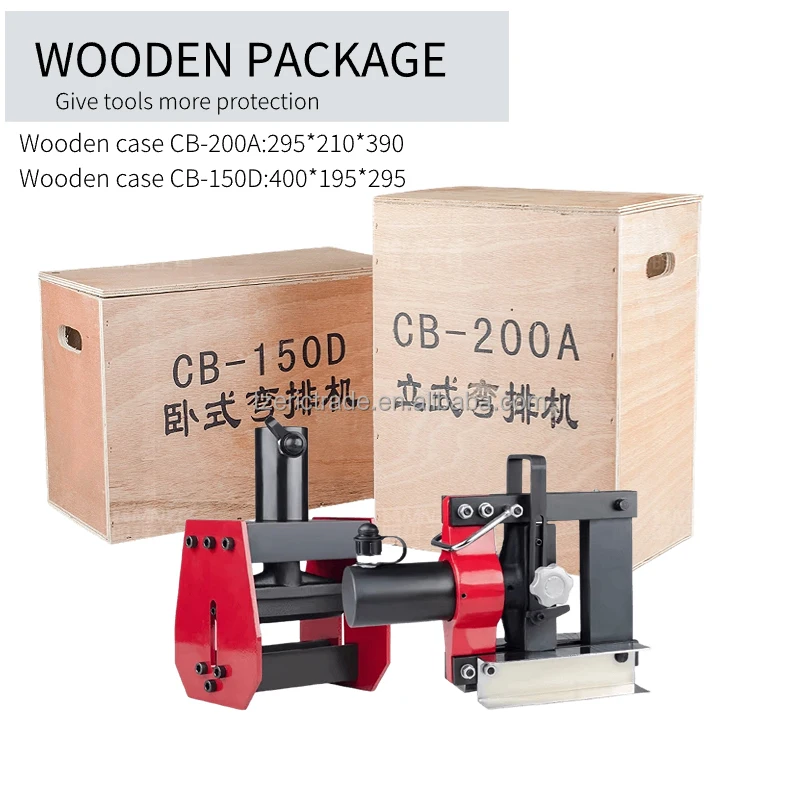

Package
|
Wooden Case
|
Wooden Case
|
|
Weight
|
Approx.23kg
|
Approx.25kg
|
|
Cutting Object
|
copper row ,aluminum low
|
copper row ,aluminum low
|

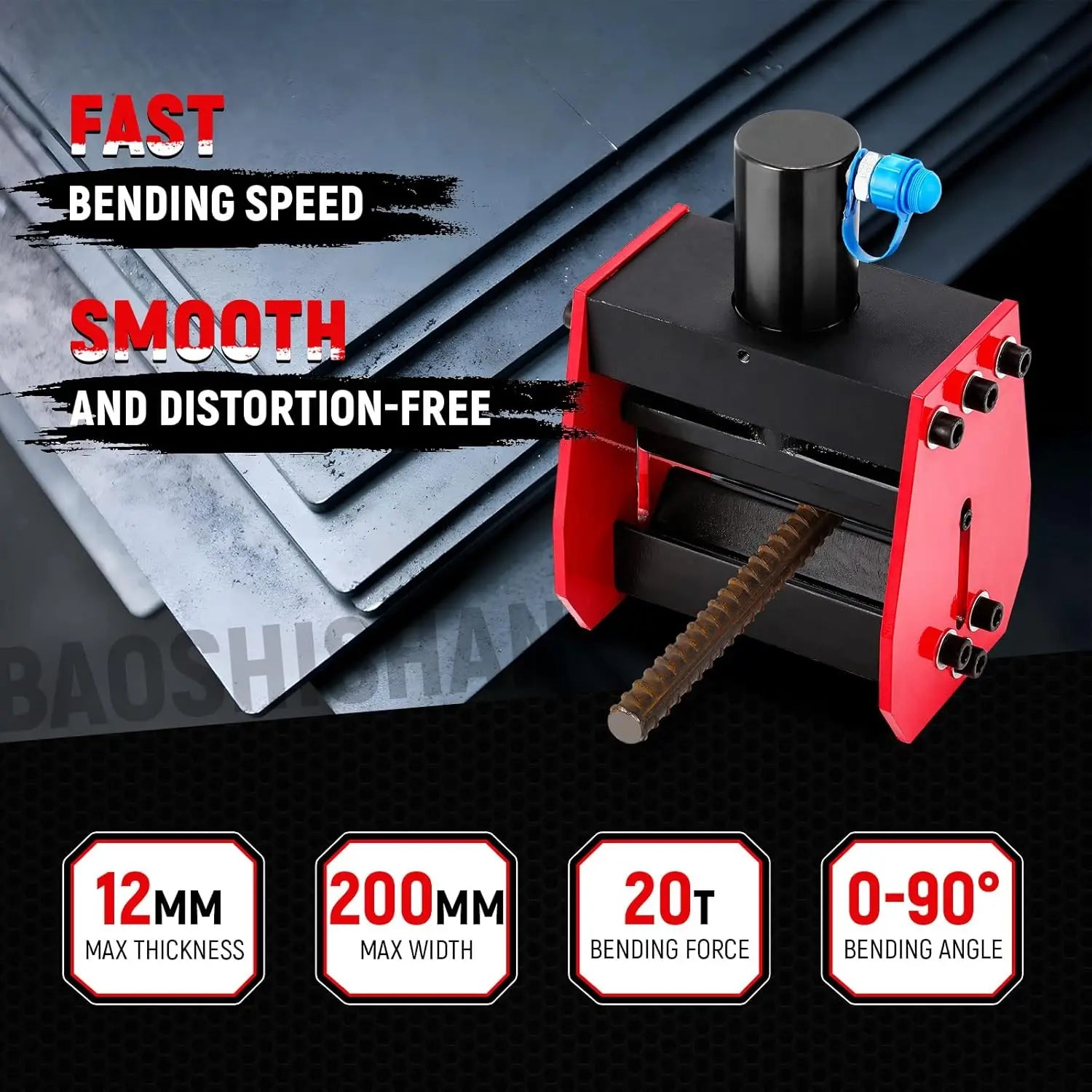

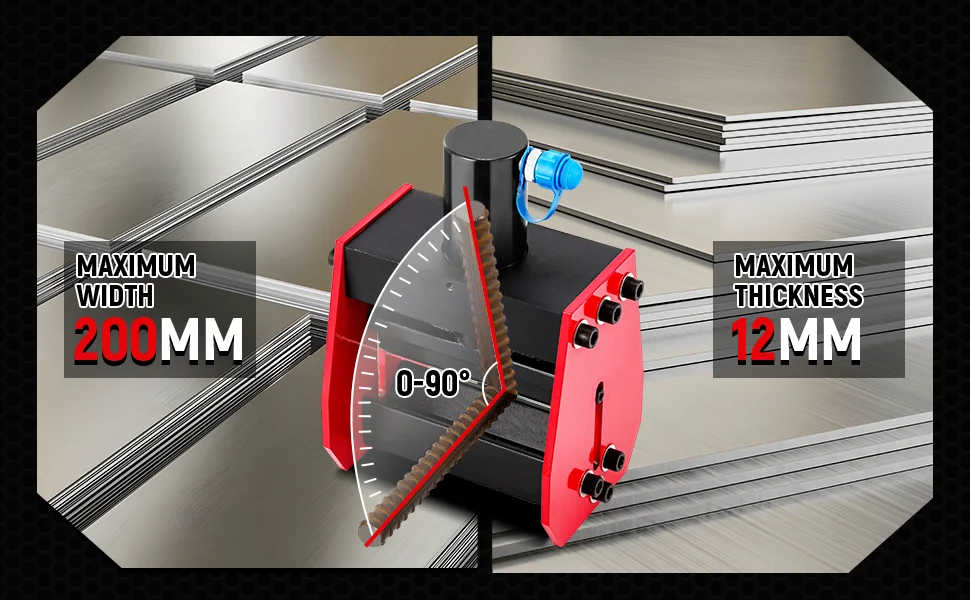

Model:CB-200A output: 20T Max width: 200mm maximum thickness: 12mm weight: 25kg

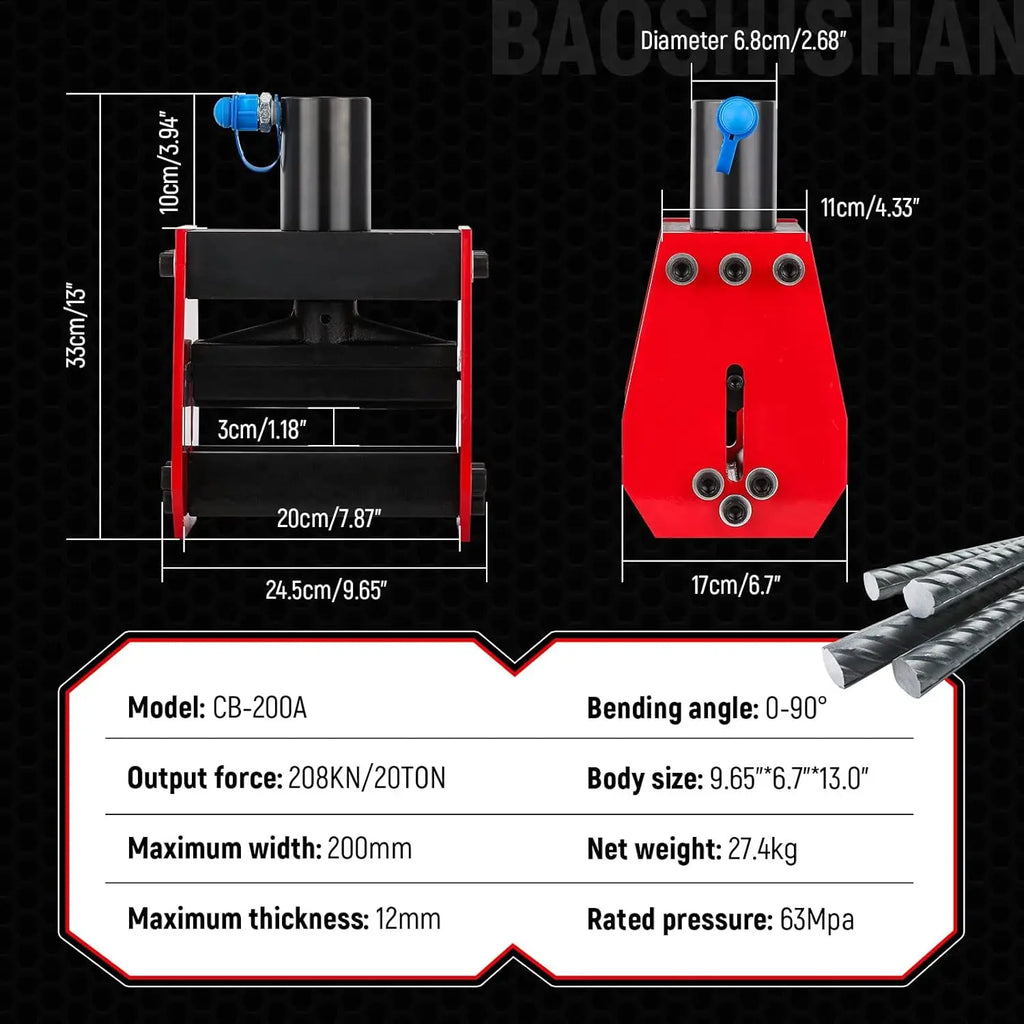

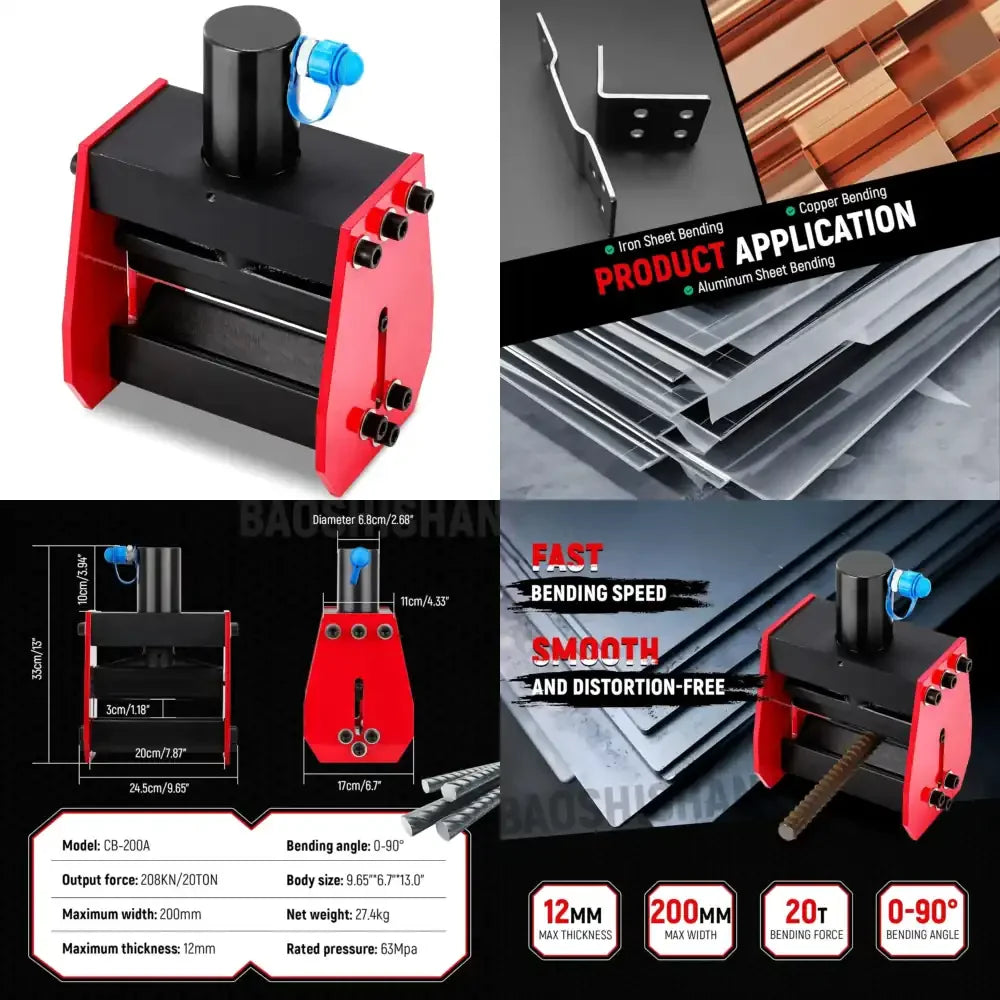

PRODUCT PARAMETERS
|
Model
|
Output
|
Max width of bend
|
Max thickness
|
Bend angle
|
Weight
|
Package
|
|
CB-200A
|
20T
|
<=200mm
|
<=12mm
|
90 degree
|
25kg
|
Wooden case
|

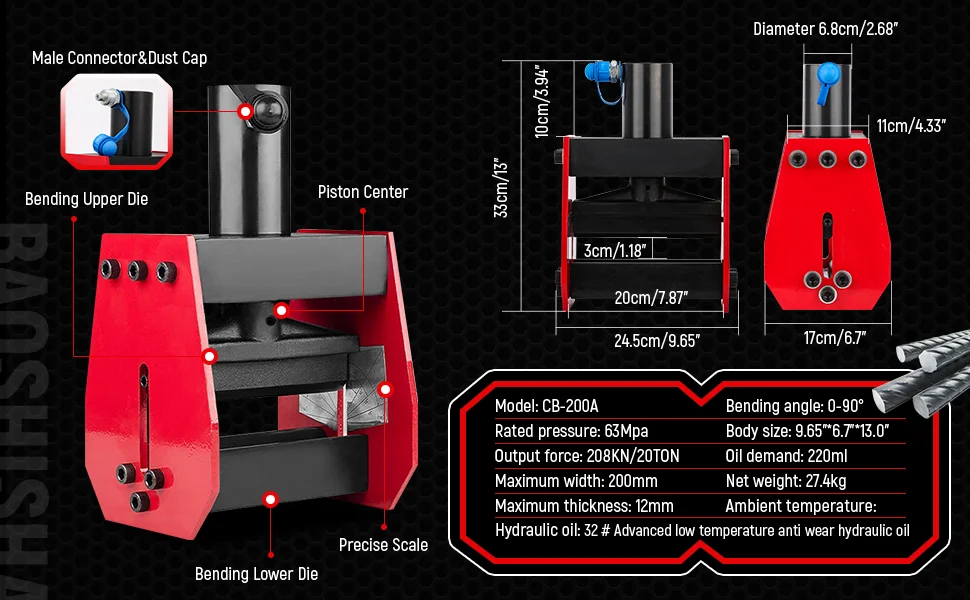

DETAILED IMAGE

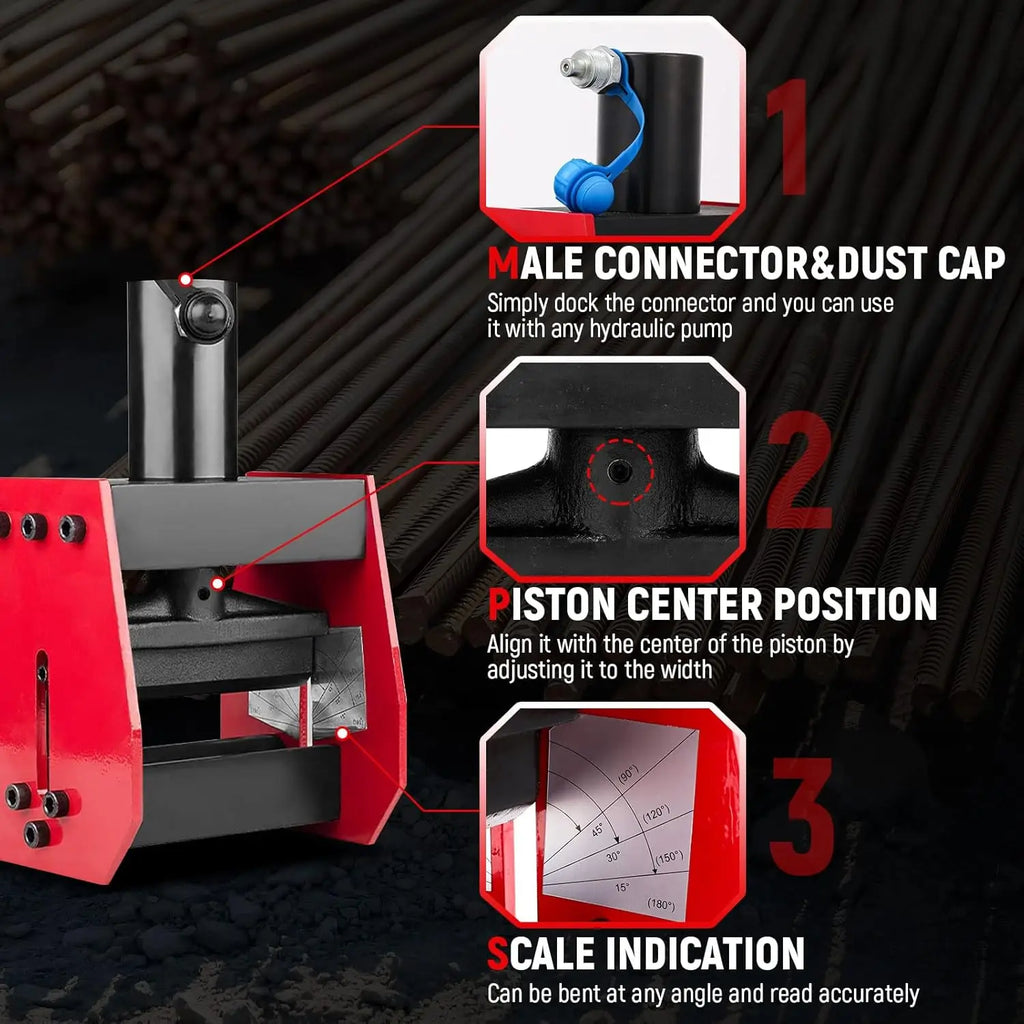

Precise Scale.
Can be bent to any angle according to demand, designed with angle provisions 90 degrees, 45 degrees instructions, in line with national standards.
Center.
Adjust the locking bolt according to the width so that the center position is aligned with the and bent accurately
Male Connector & Dust Cap
The female connector on the hydraulic pump and the male connector on the bending machine butt; when not in use, the dust cover screwed on to prevent dust from entering.
Split Design
Can be used with any hydraulic pump (manual or electric) to meet a variety of work requirements.
Hydraulic Busbar Bending Tools Are Split Type,Need To Be Used With The Pump

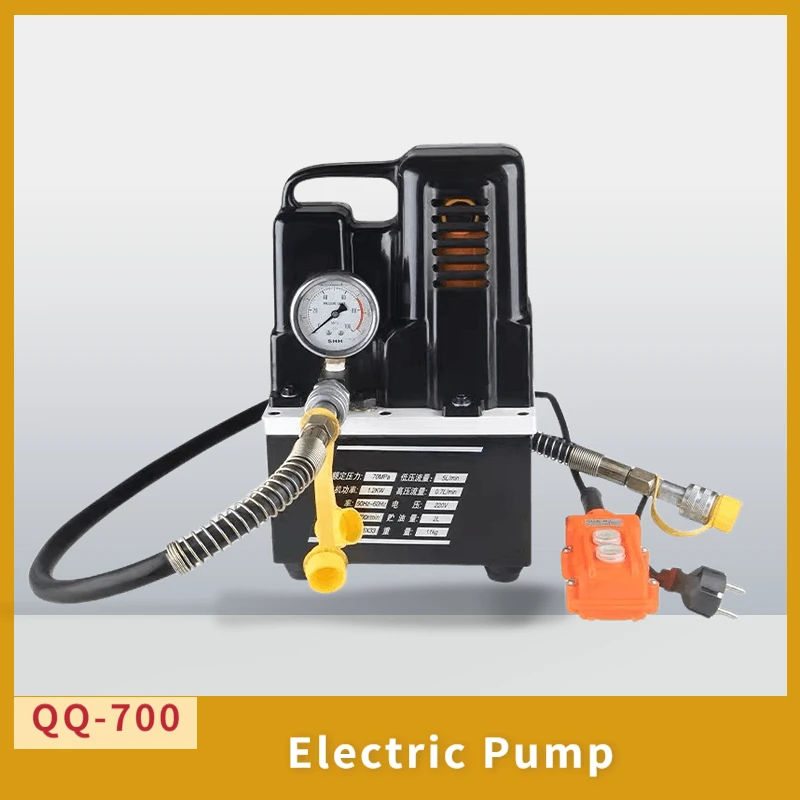

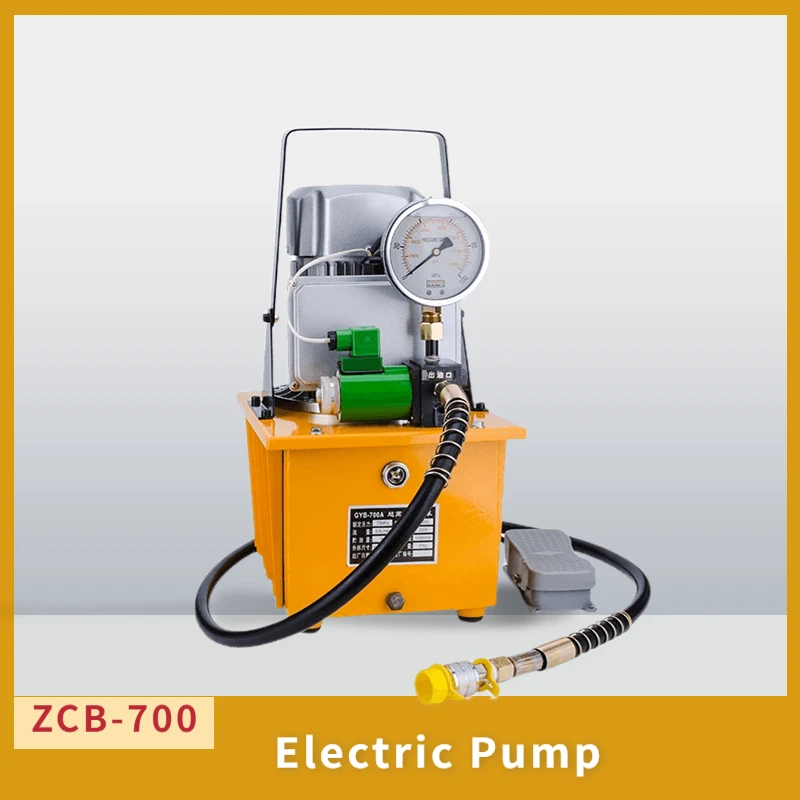

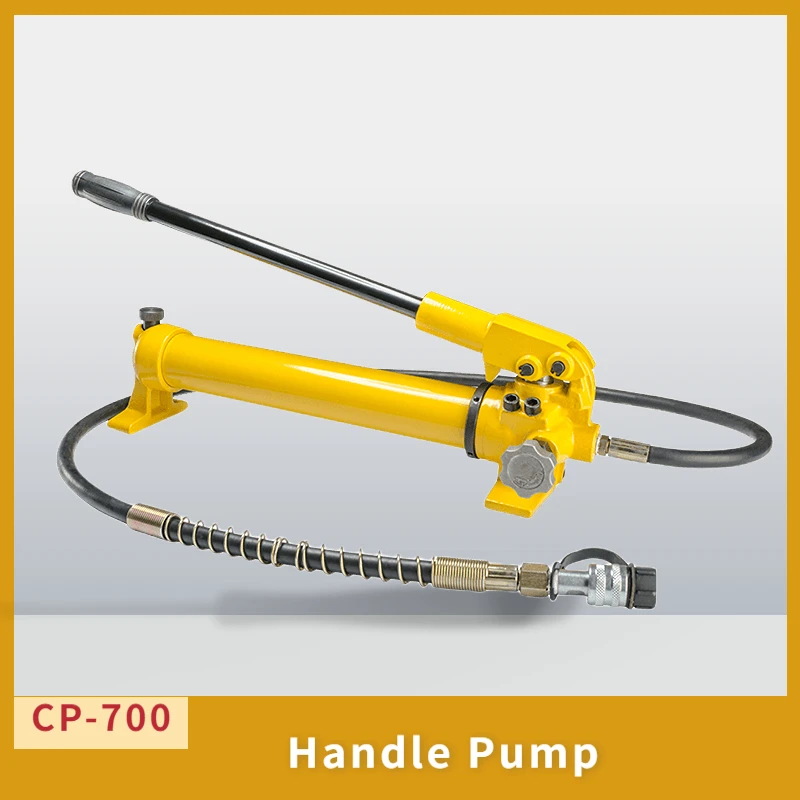

Conjunction with pumping optional CP-700/ZCB-700/QQ-700
|
Modle Number
|
ZCB-700
|
QQ-700
|
CP-700
|
|
High Pressure
|
70Mpa
|
70Mpa
|
700kg/cm2
|
|
Low Pressure
|
7Mpa
|
7Mpa
|
20kg/cm2
|
|
High Pressure Flow
|
0.9L/min
|
0.7L/min
|
2.3cc
|
|
Low Pressure Flow
|
5L/min
|
5L/min
|
13cc
|
|
Motor Power
|
0.75kw
|
1.2kw
|
700cc
|
|
Frequency
|
50Hz
|
50Hz
|
---------
|
|
Rotate Speed
|
1400r/min
|
3700r/min
|
---------
|
|
Voltage
|
220/380v
|
220
|
----------
|
|
Oil Storage
|
7L
|
2L
|
-----------
|
